ZF 8HP Timed Relay for TCU Power Delay

Description

ZF 8HP Timed Relay for TCU Power Delay

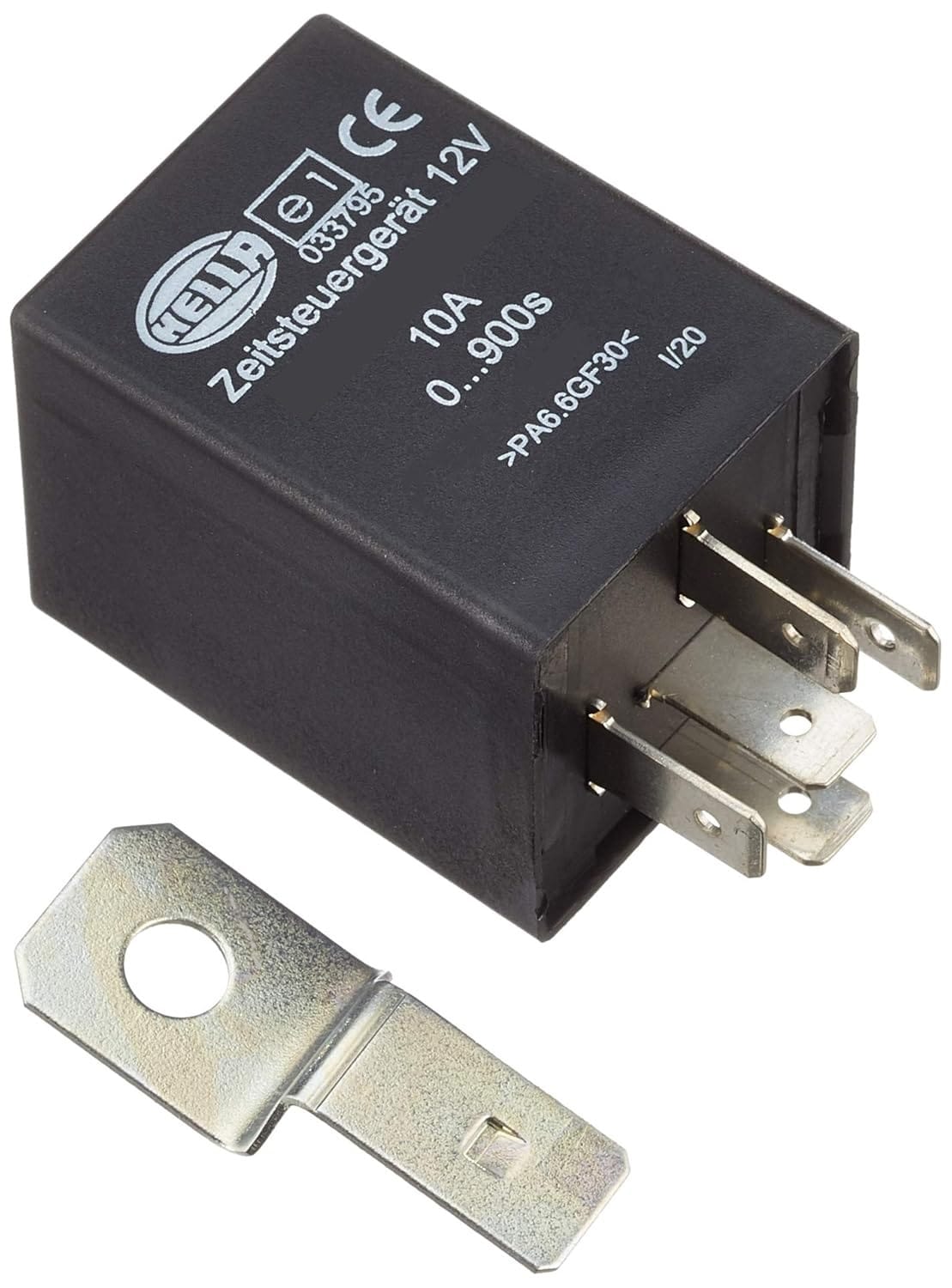

This pre-configured ZF 8HP timed relay is designed for 8HP transmission swaps where the Transmission Control Unit needs to remain powered briefly after ignition off.

In many ZF 8HP installations, the TCU should not lose power instantly when the engine or ignition is switched off. The timed relay keeps the transmission electronics powered for a short delay, helping the TCU complete its shutdown routine, store adaptation data and avoid unnecessary communication or drivability issues.

It is especially recommended for RM-Primis ECU installations using ZF 8HP transmission control, as well as other standalone ECU or 8HP controller projects where correct TCU power management is required.

Why the ZF 8HP TCU Needs a Shutdown Delay

The ZF 8HP transmission uses an internal mechatronics unit with a built-in TCU. During normal operation, the TCU manages clutch pressure, shift learning, temperature data, diagnostic information and adaptation values.

When the ignition is switched off, the TCU may need time to complete its final shutdown process. If power is removed instantly, adaptation data may not be stored correctly and the transmission may behave inconsistently after restart.

The timed relay solves this by automatically keeping the 8HP TCU powered for the required delay after ignition off, then switching it off without driver input.

Main Features

• Pre-configured power delay for ZF 8HP TCU shutdown support.
• Designed for RM-Primis 8HP control and compatible standalone ECU / 8HP controller installations.
• Automatic operation triggered by the ignition ON/OFF signal.
• Helps protect adaptation data, shift learning and internal TCU shutdown routines.
• Useful for 8HP45, 8HP50, 8HP70 and selected 8HP75 swaps, depending on wiring and controller setup.
• Compact and durable design suitable for custom wiring looms, motorsport builds and road cars.
• Cleaner wiring solution compared with manual switches or improvised shutdown-delay circuits.

Typical Applications

• ZF 8HP swaps using the RM-Primis standalone ECU.
• BMW 8HP45, 8HP50 and 8HP70 conversion projects.
• Dodge, Jeep, Chrysler and Ram 8HP70 swaps after compatible TCU setup.
• Jaguar / Land Rover, Maserati, Alfa Romeo and other 8HP-based conversions after compatibility checking.
• Standalone ECU installations where the 8HP TCU requires delayed power-off.
• Custom chassis, restomod, motorsport and performance builds using ZF 8HP transmissions.

How It Works

The relay monitors the ignition signal. When ignition is on, the relay supplies power to the required 8HP TCU circuit. When ignition is switched off, the relay continues supplying power for the configured delay period before automatically shutting down.

This gives the transmission control unit enough time to complete its shutdown process without the driver needing to press a button, use a manual switch or remember a shutdown procedure.

When You Should Use This Relay

Use this relay when your ZF 8HP installation requires the TCU to stay powered after ignition off, especially when wiring the transmission outside its original vehicle.

It is recommended when:

• You are building a ZF 8HP swap with RM-Primis ECU control.
• The original donor vehicle power management is no longer present.
• You are building a custom harness for the 8HP transmission.
• You want automatic TCU shutdown delay without a manual switch.
• You want a cleaner and safer solution than improvised wiring.

Recommended Related Parts

• ZF 8HP controller guide — full RM-Primis 8HP compatibility and setup overview.
• ZF 8HP controller integration and TCU flashing — integration and flashing service information.
• ZF 8HP universal wiring harness / loom — main 8HP transmission wiring harness.
• BMW 8HP shifter connectors — 8-pin and 10-pin connectors for BMW electronic shifters.
• All ZF 8HP controller and wiring parts.

Wiring and Schematics

For wiring diagrams and 8HP installation information, see the
ZF 8HP wiring documentation.

Before wiring the relay, confirm your exact 8HP transmission, TCU type and controller setup. Wiring requirements may vary depending on the donor vehicle, transmission variant and harness configuration.

Summary

The ZF 8HP timed relay is a small but important part of a reliable 8HP swap. It keeps the TCU powered briefly after ignition off, helping the transmission electronics complete their shutdown routine and store adaptation data correctly.

For RM-Primis ECU users, it is a recommended support part when building a clean ZF 8HP wiring system outside the original vehicle.
