BMW M54 Standalone ECU | RM Primis Plug and Play ECU for E46 E39 Z4 MS42/MS43/MS45
The BMW M54 Standalone ECU by RM Primis is a fully featured, professional standalone engine management system delivered in a true plug-and-play format for BMW vehicles originally equipped with Siemens MS42, MS43 or MS45 ECUs. M54 and M52TU engine compatible
Functionally identical to the RM Primis Universal Standalone ECU, this version uses a dedicated BMW harness adapter to allow direct installation without modifying the original wiring loom.
The ECU fully replaces the factory unit and provides complete control over fueling, ignition, VANOS, boost, safety strategies and CAN-bus communication — with support for both manual and automatic transmissions, including modern ZF 8HP gearboxes.
🟢 Plug & Play Standalone ECU (Same RM-Primis Core)
The BMW M54 Standalone ECU (M54 and M52TU engine compatible) uses the exact same RM-Primis hardware and firmware as the universal wire-in ECU.
Making it easier for you to install by using the BMW-specific plug & play harness adapter.
✔ Same processor, firmware and features
✔ Same tuning strategies and safety systems
✔ Same I/O capability and expansion
✔ No wiring cuts or splicing required

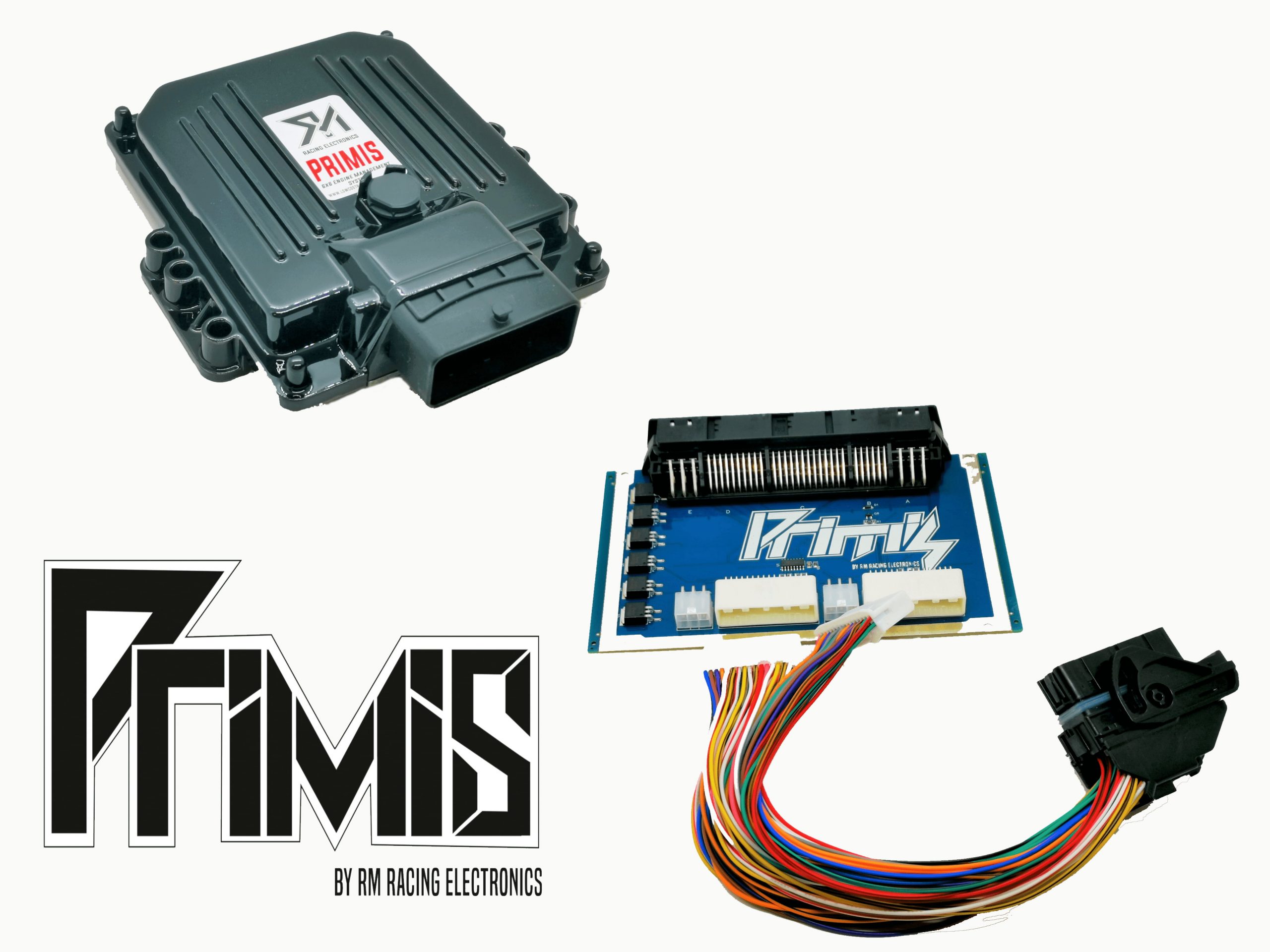

Supplied as a complete kit:
RM Primis Standalone ECU
MS42 / MS43 / MS45 Plug & Play harness adaptor
ECU adaptor cable
- Vaccum line
USB communication cable
Required accessories and documentation
🟢 Complete BMW M54 Engine Management
The BMW M54 Standalone ECU( M54 and M52TU engine compatible) provides full native control of all original engine systems:
✔ Dual VANOS (open & closed loop)
✔ DISA valve control
✔ EVAP / canister purge
✔ PWM electric cooling fan
✔ Electronic thermostat
✔ Dual knock sensor inputs
✔ OEM crank & cam trigger support (no trigger modification)
All original sensors and actuators are retained.
🟢 Advanced Fuel & Ignition Strategies (Universal ECU Features)
The BMW M54 Standalone ECU supports the full RM-Primis fuel and ignition strategy set:
✔ Speed Density
✔ Alpha-N
✔ Hybrid load models
✔ 3D and 4D fuel tables
✔ Ignition target tables with compensation layers
Fuel and ignition strategies can be freely combined and configured to suit naturally aspirated, turbocharged or supercharged applications.
🟢 Adaptive Learning, Closed-Loop & Safety Systems
The BMW M54 Standalone ECU includes all RM-Primis adaptive and safety logic:
✔ Closed-loop lambda control
✔ Adaptive fuel trims
✔ Configurable sensor validation
✔ Fail-safe strategies (MAP, TPS, CLT, IAT, oil pressure, etc.)
✔ Limp-home and fallback maps
✔ User-defined safety thresholds
These systems are fully configurable and designed for both road and motorsport use.
🟢 Rules-Based I/O Logic Engine
Like the universal RM-Primis ECU, the BMW M54 Standalone ECU includes a powerful rules-based logic engine:
✔ User-programmable inputs & outputs
✔ Conditional logic (AND / OR / timers / thresholds)
✔ Custom strategies without external modules
✔ Control of auxiliary systems, pumps, solenoids and warnings
This allows complex behaviour to be implemented directly inside the ECU.
🟢 CAN-Bus Integration
RM-Primis integrates seamlessly with BMW CAN-bus systems:
✔ Maintains CAN communication with vehicle modules
✔ Compatible with CAN dashboards and loggers
✔ OEM-style behaviour retained
🟢 Automatic Transmission Support (ZF 5HP & ZF 8HP)
The BMW M54 Standalone ECU supports advanced automatic transmission integration via CAN bus.
✔ Native support for ZF 5HP automatic transmissions
✔ ZF 8HP automatic transmission control supported via CAN bus
✔ Non-invasive integration — no valve-body modification required
RM-Primis is one of the very few standalone ECUs capable of controlling modern ZF 8HP gearboxes directly from the engine ECU, enabling coordinated torque management, shift strategies and drivability control.
For in-depth technical information about ZF 8HP CAN communication, click HERE.
For the ZF 8HP automatic transmission control integration product, click HERE.
To learn how RM-Primis enables non-invasive ZF 8HP CAN-bus integration, click HERE.
🟢 Advanced Tuning & High-Speed Datalogging
All configuration and calibration is performed using RM-Tuner, the same software used across the entire RM-Primis range.
✔ Live real-time data monitoring
✔ High-speed internal datalogging
✔ Trigger-based logging
✔ USB data extraction
✔ Continuous software updates
🟢 Performance & Motorsport Features
✔ Internal 400 kPa MAP sensor
✔ Open & closed-loop boost control
✔ Dual boost tables
✔ Boost-by-gear strategies
✔ Launch control
✔ Anti-lag strategies
✔ Advanced idle control (1-wire & 3-wire)
🟢 Drive-By-Wire Support
✔ Optional electronic throttle control
✔ Fully configurable throttle models
✔ Torque-based strategies when used with automatic transmissions
🟢 Wideband Lambda Support
✔ Bosch LSU 4.9
✔ NTK wideband support under evaluation
🟢 Technical Specifications
✔ Ignition outputs: 6
✔ Injector outputs: 6
✔ Low-side outputs: 6
✔ High-side outputs: 4
✔ VR inputs: 1 or 2
✔ Digital inputs: 3
✔ Analog inputs: 8
✔ Knock inputs: 2
✔ Electronic throttle: Yes
✔ CAN-bus: Yes
✔ Fully programmable I/O
Supports full sequential fuel and ignition operation.
🟢 Compatibility Notes
✔ BMW E46 I-Bus is not used for A/C ON request
✔ A/C activation must be handled via a ground signal
This does not affect engine or transmission operation.
🟢 Compatible BMW Models
✔ BMW E46 (M52TU / M54)
✔ BMW E39 (M52TU / M54)
✔ BMW Z4 (M54)
Perfect for any engine swaps into any chassis by using the original engine wiring loom.
Compatible with vehicles originally equipped with Siemens MS42, MS43 or MS45 ECUs.
🟢 Why Choose the BMW M54 Standalone ECU by RM-Primis
✔ Same core ECU as the universal RM-Primis
✔ BMW-specific plug & play harness adapter
✔ Full standalone engine management
✔ Advanced safety and logic systems
✔ ZF 5HP and ZF 8HP automatic transmission support
✔ Professional tuning and datalogging software included
✔ Designed and manufactured by RM Racing Electronics
The BMW M54 Standalone ECU by RM Primis delivers universal-level functionality with OEM-grade plug & play integration.
